FAAC 390 Single Articulated Arm Swing Gate Opener Kit
The FAAC 104572_5 is a 24V DC electromechanical articulated arm swing gate opener kit supporting gates up to 14 feet and 600 pounds, rated for continuous use and UL325 compliant.
Overview
The FAAC 104572_5 is a single swing gate opener kit built around the FAAC 390 electromechanical operator. Featuring an articulated arm design, it is well suited for residential driveways and installations on wide masonry columns or pillars. The kit supports gates up to 14 feet in length and 600 pounds in weight, operates on 24V DC at the actuator, and is rated for continuous use. A non-reversing mechanism eliminates the need for external locking devices. Replaces part number 104572.5.
Key Features
- Articulated arm design ideal for mounting on wide pillars or columns
- Non-reversing mechanism eliminates the need for external locking devices
- Optional adjustable limit switches for precise stopping
- UL325 compliant — Class I, Class II, Class III, Class IV — with built-in safety and reverse on contact features
- Integrated battery backup ensures operation during power outages
- Maximum opening angle: 120 degrees

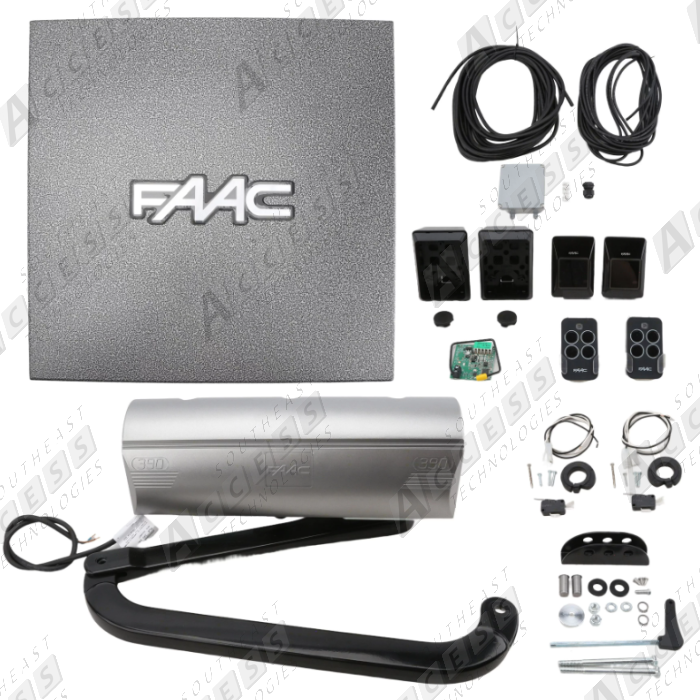

Kit Includes
- (1) 390 Operator
- (2) Limit Switches
- (1) E024U Control Board
- (1) Power Supply
- (1) Enclosure
- (2) Batteries — 12V 8 Ah
- (1) Receiver 433 RC Plug-In
- (2) 4-Channel Transmitters XT4 433 RC
Specifications
- Actuator Voltage: 24 DC
- Controller Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 40 W
- Current: 2 A
- Motor Speed: 960 r.p.m.
- Reduction Ratio: 1:700
- Angular Speed: 8 Degrees/sec
- Thrust: 630 lbf (280 daN)
- Max Gate Length: 14 ft (4.3 m)
- Max Gate Weight: 600 lb (272 Kg)
- Max Opening Angle: 120 Degrees
- Operating Temperature: -4°F to 131°F (-20°C to +55°C)
- Use Frequency: Continuous
- Protection Class: IP 44
- Dimensions: 16 x 5 x 5 in (410 x 130 x 130 mm)
- Color: Painted Steel
Compatibility — Dual Gate Upgrade
To configure this kit for a dual swing gate application, add the following components:
- 390 Operator Only — part number 104579
- Limit Switches — part number 390682
- AWG 12 2-conductor cable for operator — part number 2197
The FAAC 104572_5 delivers a complete, continuous-duty swing gate solution for residential installations requiring articulated arm flexibility and integrated low voltage operation.
