FAAC 10420112_5 Hydraulic Swing Gate Opener Kit

Overview

The FAAC 10420112_5 — the 400 CBAC Single Kit UL 325 — is a hydraulic swing gate opener kit engineered for commercial, residential, and industrial gate automation. It handles gates up to 16 feet long and 1,300 pounds, delivers up to 70 cycles per hour, and operates on 110/115/120V AC (60 Hz, 1 Phase). UL 325 compliant for Class I, II, III, and IV applications. Replaces part number 10420112.5+.

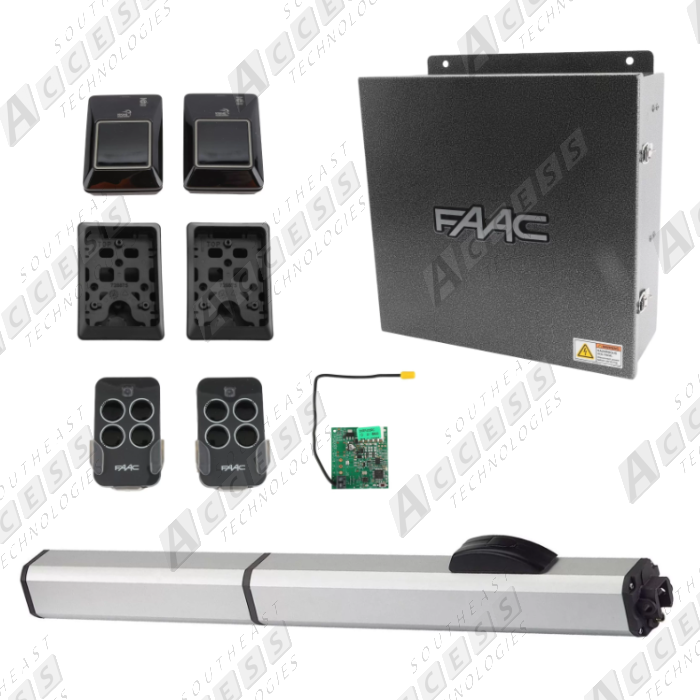

Kit Includes

• (1) 400 CBAC Operator
• (1) 455D Control Board — 115V
• (1) 14" x 16" Pre-Wired Enclosure
• (1) Receiver — 433 RC Plug-In
• (2) 4-Channel Transmitters — XT4 433 RC

Key Features

• Supports gates up to 16 ft (4.9 m) long and 1,300 lb (589 kg)
• High-frequency use up to 70 cycles per hour
• Integrated hydraulic locking in both open and closed positions
• Key-protected manual release for emergency access
• Quiet hydraulic operation
• Self-lubricating design for reduced maintenance
• Compatible with left-hinged and right-hinged gates
• Expandable into a dual swing gate system (add part 104201125)
• UL 325 compliant — Class I, II, III, and IV

Specifications

• Actuator Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
• Controller Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
• Power: 220 W
• Current: 2 A
• Motor Rotation Speed: 1400 r.p.m.
• Thrust Capacitor: 25 uF
• Thrust Force: 1390 lbf (620 daN)
• Rod Extension Speed: 0.4 in/sec (1 cm/sec)
• Effective Rod Stroke: 10.25 in (260 mm)
• Pump Flow Rate: 1 l/min
• Maximum Leaf Length: 16 ft (4.9 m)
• Maximum Leaf Weight: 1,300 lb (589 kg)
• Maximum Opening Angle: 90 degrees
• Use Frequency: 70 cycles/hour
• Operating Ambient Temperature: 4°F to 131°F (–20°C to +55°C)
• Thermal Protection on Motor: 248°F (120°C)
• Protection Class: IP 55
• Dimensions: 40.5 x 4.4 x 3.3 in (1,031 x 113 x 85 mm)
• Color: Stainless Steel
• Oil Type: Regular Oil

Compatibility

• To convert to a Primary/Secondary (bi-parting) dual gate system, add part number 104201125
• Replaces part number 10420112.5+

The FAAC 10420112_5 is a dependable, high-cycle hydraulic swing gate kit ready for demanding single-gate installations across commercial and residential applications.
