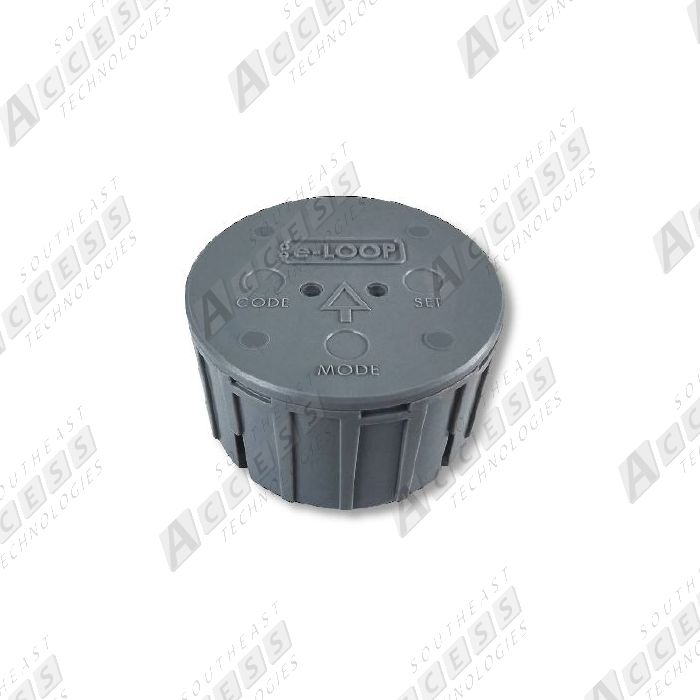

AES EL00IG-RAD E-Loop Inground Radar Loop Presence Mode
The AES EL00IG-RAD E-Loop Inground Radar Loop operates in Presence Mode and uses dual sensor technology — Magnetic field and Radar detection — with 128-bit encryption and up to 50 yards range.
Overview
The AES EL00IG-RAD E-Loop Inground Radar Loop brings the same features as the surface commercial E-Loop into a flush-mount unit that recesses seamlessly into the pavement. Its compact, unobtrusive profile eliminates tripping hazards while delivering durable performance in high-traffic environments such as busy parking lots and loading docks. This unit ships as a Loop Only in Presence Mode.
Key Features
- Dual sensor technology — Magnetic field and Radar detection
- High security 128-bit encryption
- Up to 50 yards range
- Quick and easy installation
- Recesses into driveway — compact profile: 2.1" diameter x 3.4" high (IP68)
- Not affected by ground movement
- 14,500 mA battery giving up to 6–10 years of battery life
- Top access for changing the battery
Specifications
- Model: EL00IG-RAD
- Mode: Presence Mode
- Dimensions: 2.1" diameter x 3.4" high
- Ingress Protection: IP68
- Battery: 14,500 mA
- Battery Life: Up to 6–10 years
- Range: Up to 50 yards
- Encryption: 128-bit
- Sensor Technology: Magnetic field and Radar detection
Compatible Transceivers
The EL00IG-RAD is compatible with the following AES transceivers (sold separately):
- e-Trans50 — Wide voltage range 10–36V DC; standby current 4.5 mA, active 30 mA; frequency 433.39 MHz; stores 50 remotes, 4 x e-Loops, 4 x Keypads, 4 x Entry Buttons; 1-amp relay with COM and N/O connections; Pulse, Latch and Hold modes
- e-Trans100 — Two-channel transceiver; 10–28V AC or 10–36V DC power input; frequency 433.39 MHz; stores 2 x e-Loops and 50 x remotes per channel; standby 12 mA (or 4.5 mA in LDC mode for solar); 2 relay outputs with Pulse, Hold or Latch modes; 200 code storage; SMA connector for external antenna options
- e-TransPlus Plugin — Connects to the I-Gate-Plus unit; adds auto relay times, do-not-disturb scheduling, SMS low battery notification, e-Loop lock-out times, and program mode
The AES EL00IG-RAD delivers reliable, encrypted inground detection for commercial access control applications where aesthetics and durability are equally important.
