Viking Access Systems ECUBSNXSLR G5/X9 Big Solar ECU Single
The Viking Access Systems ECUBSNXSLR is a UL 325 compliant solar ECU enclosure for single-leaf gate operators, featuring a built-in 12V battery charger, 3A solar charge regulator, and a big box capable of holding a 35 Ah battery.
Overview

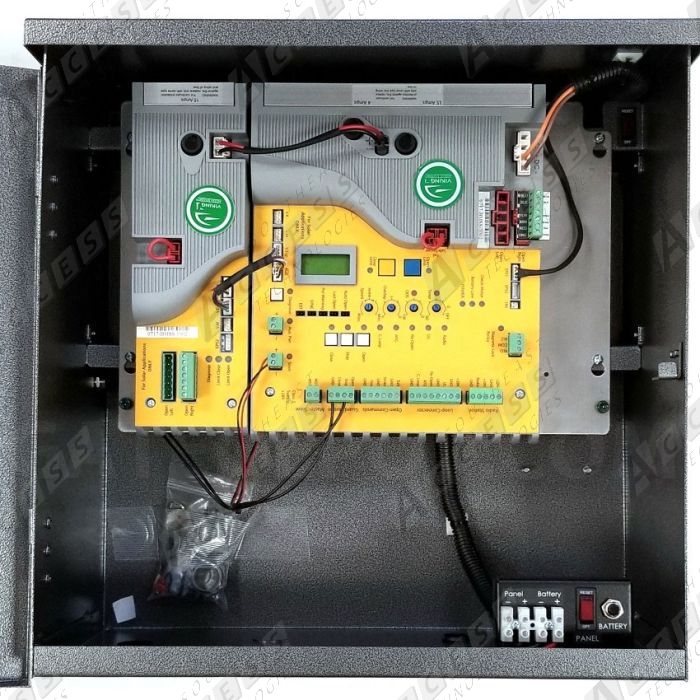

The Viking Access Systems ECUBSNXSLR is the G5/X9 Big Solar ECU Single — a UL 325 compliant control unit enclosure engineered for single-leaf solar-powered gate installations. Built with aluminum construction and a powder-coated finish, it features a lockable door and a rainproof enclosure. The big-box configuration accommodates a 35 Ah battery and includes pre-punched holes for conduits.
Key Features
- UL 325 compliant
- Two monitoring inputs with up to 4 devices per input
- Onboard display
- Built-in voltmeter
- Lightning strike protection
- 12V solar panel input
- 12V battery charger
- Built-in 3A solar charge regulator
- Solar panel switch
- Battery switch
- Big box holds a 35 Ah battery
- Aluminum construction, powder-coated
- Lockable door
- Rainproof enclosure
- Anti-tailgating feature
- Sleep mode
- Adaptive motor control
- Adjustable speed control
- Pre-punched holes for conduits
Specifications
- Compatible Models: G5 Solar
- Operating Voltage: 24VDC
- Power Source: 12VDC
- Main Power Fuse: 4A Timed
- Accessory Power: 24VDC – 750mA
- Power Consumption – Sleep: 19mA
- Motor Current (Typical): 2.0A
- Operating Temperature: -4°F (-20°C) to 160°F (71°C)
- Dimensions – Standard Box (L x D x H): 16.75 x 6.125 x 15.625 in
- Dimensions – Big Box (L x D x H): 18.75 x 8.125 x 18.2 in
- Manufacturer's Warranty: 3 years
Compatibility
- Compatible with G5 Solar gate operators
The Viking Access Systems ECUBSNXSLR delivers a robust, weather-resistant solar control solution for professional single-leaf gate installations.
