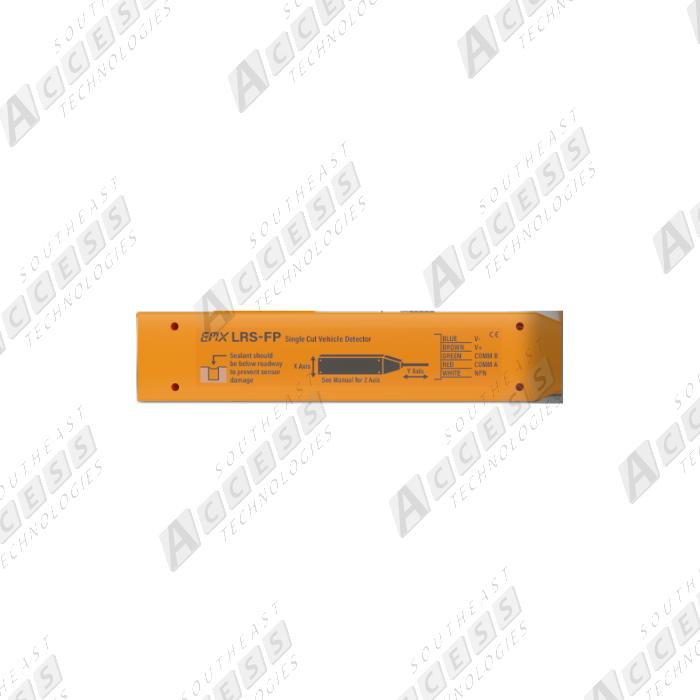

EMX Industries 2305-2 Loop Replacement System LRS-FP-50

Overview

The EMX Industries 2305-2 Loop Replacement System (LRS-FP-50) eliminates the need for traditional inductive loop cuts by using advanced 3-axis magnetoresistive sensing technology that responds to changes in the Earth's magnetic field caused by ferrous objects. Three sensing elements measure the X, Y, and Z axes independently to improve detection sensitivity in both above-ground and below-ground installations. Its compact, loop-less design reduces installation costs compared to traditional inductive loop technology.

Key Features

• Three-dimensional presence detection of vehicles across X, Y, and Z axes
• Exclusive DETECT-ON-STOP™ (DOS®) — detects only when a vehicle has come to a complete stop (minimum 1 second, 1–2s typical), ideal for ignoring cross traffic in tight spaces
• Stand-alone sensor with non-volatile memory storing ambient background and settings
• Automatic environmental compensation and local magnetic field nulling — averages local field signature in any sensor orientation
• ULTRAMETER™ displays optimum sensitivity setting and crosstalk interference
• 10 sensitivity levels (0–9)
• Pulse/presence output — relay/NPN output configurable for pulse or constant presence
• Optional Logic Interface for extended detection with additional relay contact output
• Reverse polarity and fuse protected supply circuitry
• FP sensor housing: Polyamide; IP69K environmental rating

Specifications

Sensor (FP Variant)

• Sensing Technology: 3-axis magnetoresistive
• Outputs: NPN (open collector)
• Output Ratings: 50 mA
• Connection: 5 conductor direct burial
• Housing: Polyamide
• Environmental Rating: IP69K
• Dimensions: 86mm (3.4") x 21mm (0.9") x 8mm (0.3")
• Weight: 23g (0.05 lbs.)
• Detection Range: 1.5m (5 ft.)
• Axis Sensitivity: 512 counts/gauss (typical)
• Sensitivity Levels: 10 levels: 0–9
• Operating Environment: -40°C…82°C (-40°F…180°F)

Control Unit

• Power/Fault Indicator: Green LED
• Detect Indicator: Red LED
• Outputs: SPDT relay / NPN (open collector)
• Output Ratings: Relay: 1A @ 24VDC…120VAC; NPN: 50 mA max
• Connection: 10 position screw terminal
• Housing: ABS
• Environmental Rating: IP30
• Power Supply: 12–30 VDC and 24 VAC
• Current Draw: 40 mA max
• Dimensions: 76mm (3.0") x 22mm (0.9") x 70mm (2.75")
• Weight: 68g (0.15 lbs.)

Logic Interface (Optional)

• Power Indicator: Green LED
• Detect Indicator: 2x Red LEDs
• Configuration Selector: 10 position rotary switch
• Relay 1: SPDT (form C)
• Relay 2: SPST (form A)
• Power: 12–30 VDC and 24 VAC
• Operating Current (Standby/Detect): One sensor connected: 22/35 mA; Two sensors connected: 33/60 mA
• Housing Material: ABS
• Enclosure: IP30
• Operating Environment: -40°C…82°C (-40°F…180°F), 0…95% relative humidity
• Dimensions: 73mm (2.9") x 38mm (1.2") x 78mm (3.1")
• Weight: 0.25 lbs. (113 g)
• Connector: 11 pin male connector (JEDEC B11-88)

The EMX Industries 2305-2 delivers a modern, loop-less approach to vehicle detection that simplifies installation and improves reliability in demanding access control applications.
