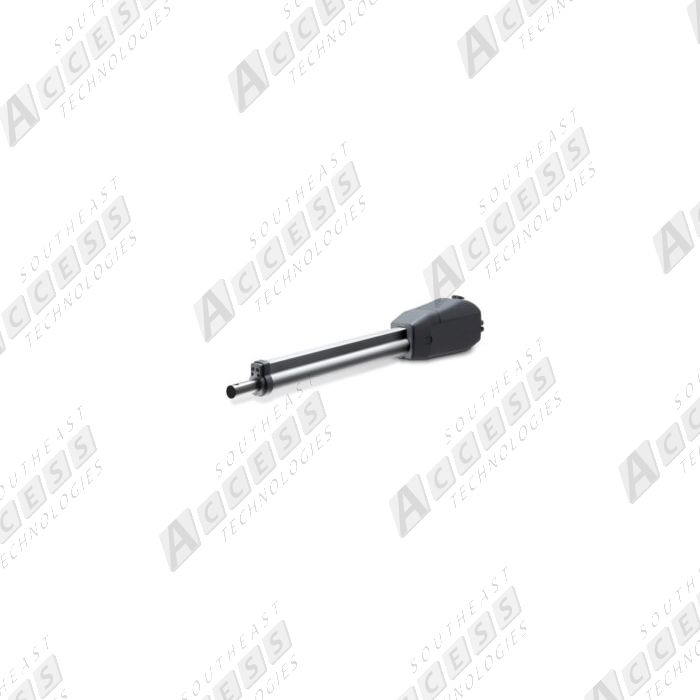

Maximum Controls MAX-SUPERARM1300 Linear Gate Operator
The Maximum Controls MAX-SUPERARM1300 is a heavy-duty linear gate operator featuring a continuous duty brushless motor, 24VDC operation, and support for gates up to 8’ x 2,300 lbs or 20’ x 1,500 lbs.
Maximum Controls MAX-SUPERARM1300 Linear Gate Operator
The Maximum Controls MAX-SUPERARM1300 is a heavy-duty linear gate operator engineered for demanding installations. It operates on a 24VDC brushless motor with a direct gear drive system — no internal chains, belts, or pulleys. A patented brake system allows the operator to retract with extreme force; when force exceeds 2 tons, the clutch releases upon impact and automatically resets. The MAX-SUPERARM1300 is UL 325/991 compliant for Class I, II, III, and IV and CSA approved. Must be installed by a professional gate installer — warranty is void if installed by non-professionals.
Key Features
- Continuous duty brushless motor with no overheating
- Direct gear drive — no internal chains, belts, or pulleys
- Patented brake system with overload clutch release on 2-ton impact; auto-resets after release
- Stainless steel output shaft — 1 1/4"
- Intelligent ramp-up and ramp-down for smooth gate operation
- Mechanical and electrical gate release functions
- Switchable 115/230 voltage selection
- Adaptive DSP motor control for advanced motion control
- Real-time performance analyzer and event log (OBD PORT and Black Box)
- Magic Box enables low voltage wiring for remote power up to 1,000 ft
- On-board switch for solar mode — 5 milliamp idle in sleep mode
- Gold contact input connections and automobile grade connectors
- Operational range: -4°F to 165°F (-20°C to +74°C), including battery backup without a heater
- Robust lightning protection: up to 20KVolts and 10KAmps on all inputs and outputs (35 channels), including loop detector input connections
- Two selectable 16-position safety obstruction sensors, auto-adaptable to gate weight and size
- Two independently adjustable closing speed controls with 16 positions each
- Independent closing speeds for primary and secondary
- Dual motor overcurrent safety shut-off
- 24VDC battery backup with two 7 Ah batteries — up to 500 full cycles on backup; three backup modes: open once, leave open, or leave closed
- On-board three-button station
- On-board UL reset button
- Advanced security: built-in audible and remote alarms
- Magnetic lock control relay outputs with selectable delay times
- Tamper alert relay output activates if gate is forced open
- Gate disable feature — disables all inputs except fire department and Max Open input
- Advanced anti-tailgate feature
- Built-in transaction buffer and gate status outputs
- Key-activated jog function for emergency OPEN/CLOSE
- Steel cover with lock for protection against intruders and vandalism
- Built-in advanced entrapment protection and alarm output
- Built-in gate-in-motion alarm for industrial applications
- Vehicle hit protection technology protects operator from collision damage
- Additional entrapment prevention devices REQUIRED
Specifications
- Operational Voltage: 24VDC
- Motor: Continuous duty, brushless, 24V DC
- Opening Speed: ~8" to 12" per second
- Output Shaft: Stainless steel, 1 1/4"
- Drive: Direct gear drive
- Battery Backup: 24VDC system with (2) 7 Ah batteries
- Backup Cycles: Up to 500 full cycles
- Operational Temperature: -4°F to 165°F (-20°C to +74°C)
- Lightning Protection: Up to 20KVolts and 10KAmps, 35 channels
- Warranty: 2 Year / 100,000 Cycle Limited Manufacturer Warranty
- Compliance: UL 325/991 Class I, II, III, and IV; CSA approved
- Manufacturer Part Number: MAX-SUPER-ARM-1300
Suitable Gate Dimensions
- 8’ x 2,300 lbs
- 12’ x 2,000 lbs
- 16’ x 1,800 lbs
- 20’ x 1,500 lbs
The Maximum Controls MAX-SUPERARM1300 delivers industrial-grade security, advanced safety compliance, and robust performance for professional gate installations.
