Linear MCS302850 2-Channel 12-24V Gate Receiver
The Linear MCS302850 is a 2-channel, 12-24V gate receiver designed for gate operator applications, operating at 300 MHz or 310 MHz (jumper selectable) with 512 codes set by dip switches.
Overview
The Linear MCS302850 2-Channel, 12-24V Gate Receiver is designed for use in gate operator applications. It is a dual frequency receiver with an internal jumper that selects either 300 MHz or 310 MHz operating frequency. The 300 MHz frequency is compatible with standard Multi-Code transmitters; the 310 MHz frequency is compatible with Stanley version Multi-Code transmitters. The receiver is programmed using a 9-position coding switch, and transmitter switch #10 selects which receiver channel will activate.
Antenna & Installation

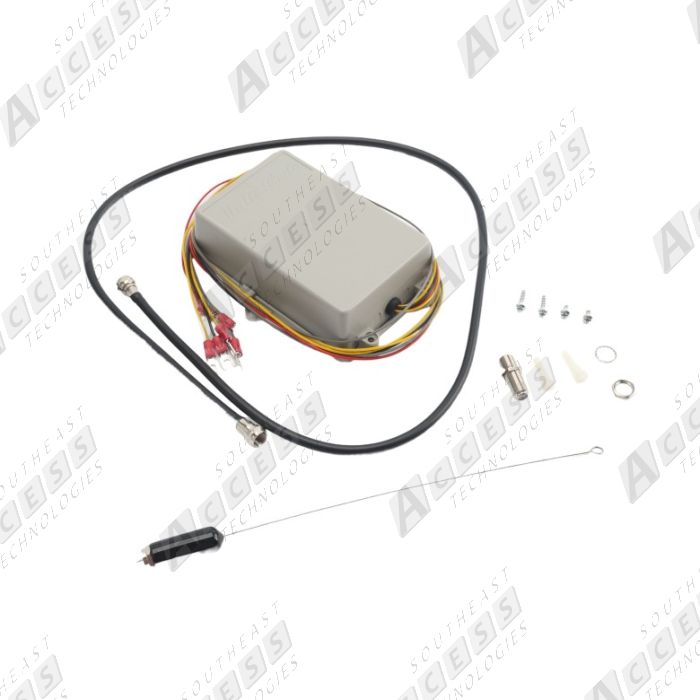

An 11-inch wire whip antenna is included and connects to the receiver's Type-F antenna connector. Also included is 3 feet of coax cable and a bulkhead connector for remotely mounting the whip antenna in installations where the receiver is housed inside a shielded metal enclosure such as a gate operator housing. An external Model 106603 Remote Whip Antenna can also be used with this receiver. 3-foot, 2-conductor wire leads with spade lugs are provided for attachment to the gate operator's radio activation terminals.
Key Features
- Operates on 12-24 volts AC or DC power
- Two channels
- Dual frequency: 300 MHz or 310 MHz (jumper selectable)
- 512 codes set by dip switches
- Includes 11-inch whip antenna with Type-F connector
- Includes 3-foot antenna coax and bulkhead connector
- Normally open relay outputs switch up to 1 amp @ 30 VAC
- Compatible with external Model 106603 Remote Whip Antenna
Specifications
- Power: 12-24V AC or DC
- RF Frequency: 300 MHz or 310 MHz (jumper selectable)
- Channels: 2
- Codes: 512 (set by dip switches)
- Relay Output: Up to 1 amp @ 30 VAC (normally open)
- Dimensions: 3.625" W x 5.25" H x 1.5" D
- Antenna: 11-inch wire whip, Type-F connector
Compatibility
The 300 MHz setting is compatible with standard Multi-Code transmitters. The 310 MHz setting is compatible with Stanley version Multi-Code transmitters.
The Linear MCS302850 delivers reliable dual-channel gate receiver performance for professional gate operator installations.
