NICE North America T12L1-AC-KIT Titan Bundle Swing Gate Oper
The NICE North America T12L1-AC-KIT is an AC-powered single swing gate opener kit supporting gates up to 20 ft / 600 lbs or 8 ft / 1,000 lbs, with battery backup for continued operation during power outages.
Overview
The NICE North America T12L1-AC-KIT Titan Bundle is an AC-powered single swing gate opener kit engineered for quiet, smooth, all-weather performance. The kit includes two 8Ah rechargeable batteries for backup power during outages, and features an MB1050 Enclosed Control Box with the 1050 Control Board offering adjustable safety reverse and an adjustable close timer. The weather-resistant enclosure is built to withstand harsh conditions.

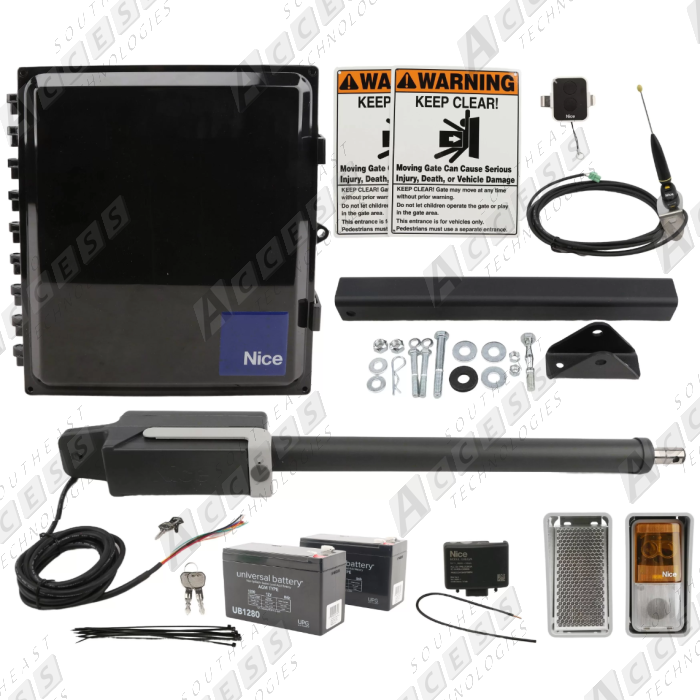

Kit Includes
- Titan 912L-1 Actuator with Installation Hardware
- MB1050 Enclosed Control Box with 1050 Control Board
- ABF/A External Long-Range Adjustable Antenna
- Two 8Ah Rechargeable Batteries
- ON2E/A Two-Channel Remote Transmitter
- OXI/A Plug-In Receiver Module
- MX4257 UL325 Reflective Photo Eye Set
- Two Warning Signs
Key Features
- Supports swing gates up to 20 ft long (600 lbs) or 8 ft long (1,000 lbs)
- AC-powered with built-in battery backup
- Adjustable current sensitivity for automatic safety reverse
- 14–16 second open/close time with adjustable soft-start and soft-stop
- Weather-resistant enclosure
- Adjustable close timer
Specifications
- Input Voltage: 110/115/120 AC (60 Hz, 1 Phase); 208 AC (60 Hz, 1 Phase); 220/230/240 AC (60 Hz, 1 Phase)
- Actuator Voltage: 12V DC
- Operating Voltage: 12V DC
- Accessory Power: 12V DC and 24V DC
- Idle Current: 10 mA
- Arm Speed: 14–16 seconds (adjustable soft-start, soft-stop)
- Drive Type: Electromechanical
- Temperature Range: -4°F to 122°F
- Usage Class: I, II
- Single or Dual Arm: Single
- Maximum Gate Weight: 1,000 lbs
- Warranty: Two Year Manufacturer's Limited Warranty
The NICE North America T12L1-AC-KIT delivers reliable, weather-resistant gate access control with the convenience of AC power and battery backup in one complete package.
