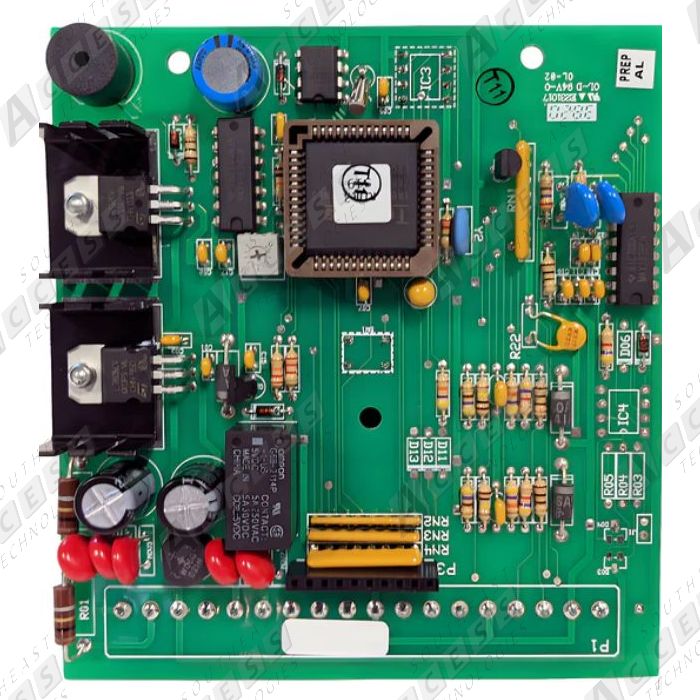

DoorKing 1505-009 1520 Series Replacement Circuit Board
The DoorKing 1505-009 is a genuine replacement circuit board for 1520 Series access controllers, supporting up to 1,000 user codes and 26-bit Wiegand-compatible devices with advanced features like time zone programming and transaction logging.
Replacement Board for Doorking 1520 Series Access Controllers
Upgrade your Doorking 1520 Series with the Doorking 1505-009 replacement circuit board. This genuine part works seamlessly with the 1520-081 controller and supports 26-bit Wiegand-compatible devices. Enjoy advanced features like time zone programming, anti-pass back, and transaction logging.
Note: The memory chip is not included. You’ll need to transfer it from your original board or purchase it separately.
Key Features
- Compatible with Doorking 1520 Series controllers
- Supports 1,000 user codes and programmable time zones
- Stores up to 3,656 transaction events
Technical Specifications
- Model: 1505-009 (Rev E or higher)
- Power Requirements: 16 VAC or 12–24 VDC
- Printer Port: RS-232 serial
Conclusion
The Doorking 1505-009 circuit board brings your 1520 Series controller back to life. Make sure to install a compatible memory chip for full functionality, as it is not included.
