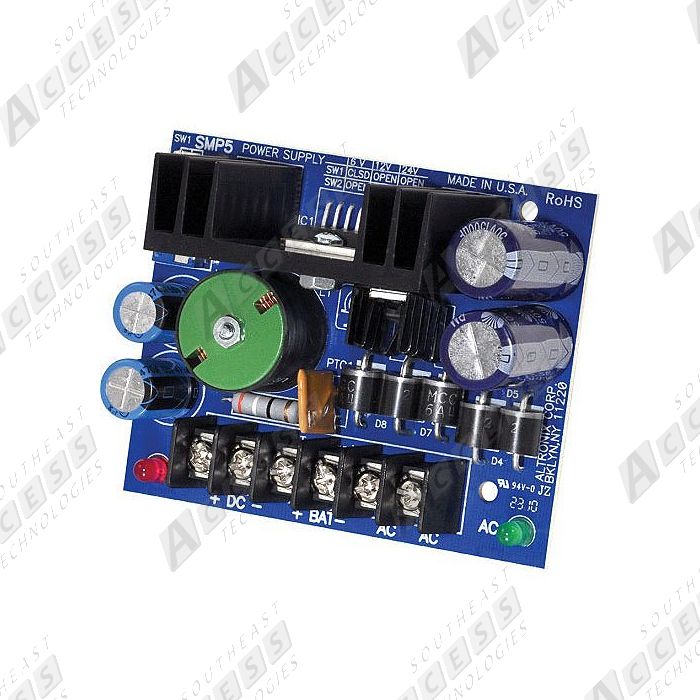

Altronix SMP5 Power Supply Charger

Altronix SMP5 Power Supply Charger

The Altronix SMP5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC, or 24VDC output. This unit has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

Key Features

• Selectable output: 6VDC, 12VDC, or 24VDC
• 4A supply current
• Filtered and electronically regulated outputs
• Short circuit and thermal overload protection
• Built-in charger for sealed lead acid or gel type batteries (maximum charge current 0.3A)
• Zero voltage drop when switching over to battery backup
• AC input and DC output LED indicators
• Extremely compact design
• Includes battery leads
• Snap Track compatible
• Batteries sold separately

Specifications

• Input: 24/28VAC (6VDC applications use TP1640; 12VDC applications use T2428100; 24VDC applications use T2428175)
• Output: 6VDC, 12VDC, or 24VDC selectable @ 4A
• Battery Charge Current: 0.3A maximum
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Relative Humidity: 85% ±5%
• BTU/Hr (approx.): 6VDC: 13 BTU/Hr; 12VDC: 25 BTU/Hr; 24VDC: 49 BTU/Hr
• AC Input VA Requirement: 6VDC: 55.2VA; 12VDC/24VDC: 115VA
• Form Factor: Board

Compatibility

• 6VDC applications: use transformer TP1640
• 12VDC applications: use transformer T2428100
• 24VDC applications: use transformer T2428175

The Altronix SMP5 delivers reliable, regulated power for demanding access control and security installations.
