FAAC 202025C_1 E024U Control Board

Overview

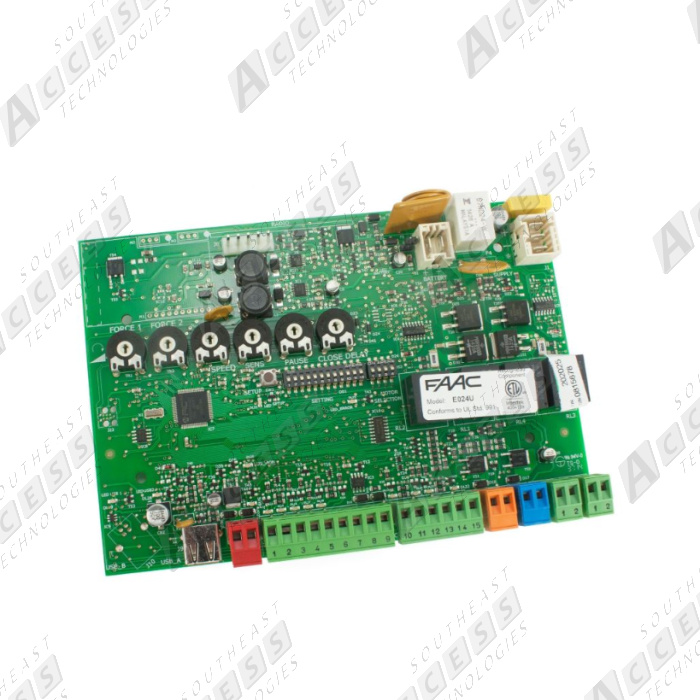

The FAAC 202025C_1 is a replacement E024U control board engineered to control numerous FAAC low voltage swing gate operators. It features a 24VDC voltage backup power supply and is compliant with UL325 and UL991 safety standards. This board requires the use of monitored safety devices for entrapment protection.

Key Features

• UL325 and UL991 safety standard compliant
• Powerful and efficient switching power supply
• Easy programming with trimmers and dip switches
• One pushbutton automatic time learning
• Self resetting fuses
• Built in battery backup
• Low current idle mode to preserve battery
• Opening and closing delays selectable for overlapping gates
• Speed and force adjustable with trimmers
• Control board firmware upgradable via USB
• Solar powered option

Specifications

• Input Voltage: 115 VAC (+10% -6%)
• Input Power: 400 W max — 4 W stand by
• Motor Output Current Max: 7 A
• Accessory Power: 24 Vdc — 500 mA
• Operating Temperature: -4°F to 131°F (-20°C to +55°C)
• Dimensions: 17.5 x 15.5 x 6.2 in (445 x 393 x 157 mm)
• Protection Class: NEMA type 3, 3R, 4, 4X, 12 and 13

Compatibility

The FAAC 202025C_1 is compatible with the following FAAC gate openers:

• FAAC 390
• FAAC 415
• FAAC 770
• FAAC S418
• FAAC S450H
• FAAC S800H

Replaces part number 202025C.1. The FAAC 202025C_1 is a reliable replacement control board solution for maintaining your FAAC swing gate operator system.
