Maximum Controls MAX-ULTRA-ARM Residential & Commercial Heav

Overview

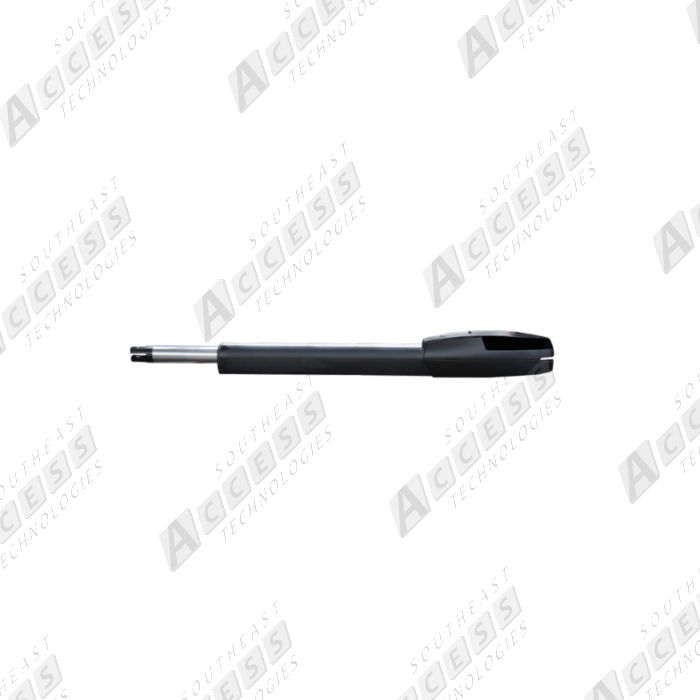

The Maximum Controls MAX-ULTRA-ARM is a heavy duty 24-volt DC linear actuator built for residential and light commercial use. Its corrosion-resistant powder coated aluminum housing, stainless steel output shaft, and direct gear drive — with no internal chains, belts, or pulleys — deliver reliable performance across a wide range of gate sizes and weights. The unit operates across an extreme temperature range of -4°F to 165°F (-20°C to +74°C), including during battery backup operation, without requiring a heater.

Key Features

• Continuous duty brushless motor with 24VDC operational voltage
• Direct gear drive — no internal chains, belts, or pulleys
• Stainless steel output shaft, 2" tubular
• Powder coated aluminum housing for corrosion protection
• Switchable 115/230 voltage selection
• Adaptive DSP motor control for advanced motion control
• Limit switch based intelligent ramp-up and ramp-down for smooth gate operation
• Two independently adjustable closing speed controls with 16 positions each
• Independent closing speeds for primary and secondary cycles
• Two selectable 16-position safety obstruction sensors, auto adaptable to gate weight and size
• Dual motor overcurrent safety shut off
• 24VDC battery backup system with two 7-Ah batteries — up to 500 full cycles on backup with three selectable modes: open once, leave open, or leave closed
• Magic Box enables low voltage wiring for remote power up to 1,000 ft
• On-board solar mode switch enables 5 milliamp idle in sleep mode
• Real time performance analyzer and event log via OBD PORT and Black Box
• Robust lightning protection up to 20,000 volts and 10,000 amps on all inputs and outputs — 35 channels, including loop detector input connections
• Gold contact input connections and automobile grade connectors
• On-board three-button station and UL reset button
• Mechanical and electrical gate release functions
• Steel cover with lock protects against intruders and vandalism
• Advanced anti-tailgate feature prevents unwanted intrusion
• Tamper alert relay output activates if gate is forced open; audible alarm if gate is tampered with or ERD is triggered
• Magnetic lock control relay outputs with selectable delay times
• Gate disable feature disables all inputs except fire department and Max Open input
• Key activated jog function for emergency open/close
• Built-in transaction buffer and gate status outputs for monitoring
• Built-in advanced entrapment protection and alarm output
• Built-in gate-in-motion alarm for industrial applications
• UL 325/991 compliant — Class I, II, III, and IV; CSA approved
• Additional entrapment prevention devices are required

Specifications

• Operational Voltage: 24VDC
• Power Source: Switchable 115/230VAC or 24VDC Solar
• Motor Type: Continuous duty, brushless
• Output Shaft: Stainless steel, 2" tubular
• Drive Type: Direct gear drive
• Battery Backup: Two 7-Ah batteries, up to 500 full cycles
• Operational Temperature Range: -4°F to 165°F (-20°C to +74°C)
• Lightning Protection: Up to 20,000V and 10,000A on all inputs/outputs (35 channels)
• Closing Speed Controls: Two independent, each with 16 selectable positions
• Safety Obstruction Sensors: Two selectable, 16-position, auto-adaptive
• Remote Power Wiring Distance (Magic Box): Up to 1,000 ft
• Solar Idle Current: 5 milliamps
• Warranty: 2-year / 100,000-cycle limited manufacturer warranty
• Certifications: UL 325/991 Class I, II, III, IV; CSA approved

Compatible Gate Dimensions

• 8 ft gate up to 1,600 lbs
• 12 ft gate up to 1,200 lbs
• 16 ft gate up to 800 lbs
• 18 ft gate up to 600 lbs

The Maximum Controls MAX-ULTRA-ARM is a professional-grade actuator engineered for demanding swing gate installations — and must be installed by a qualified professional gate installer to maintain warranty coverage.
