FAAC 108710_5 In-Ground Hydraulic Swing Gate Opener Kit
The FAAC 108710_5 S800H CBAC Single Kit is an in-ground hydraulic swing gate opener supporting gates up to 13 ft and 1,760 lbs with a 100-degree opening angle.
Overview
The FAAC 108710_5 is the S800H CBAC Single Kit — a premium in-ground hydraulic swing gate opener built for residential driveways and condo applications where concealed installation and visual appeal are priorities. It supports heavy swing gates up to 13 feet wide and 1,760 pounds (800 kg), delivers a 100-degree opening angle, and uses hybrid hydraulic/electronic technology with integrated encoder feedback for precise, smooth operation. This kit includes built-in battery backup and is rated to UL325 Safety Standards. Replaces part number 108710.5+.
Key Features
- Hybrid hydraulic/electronic operator with encoder feedback
- 100-degree opening angle
- Integrated mechanical stops for open and close positions
- Built-in lifting handles for easy handling
- E024U control board with reverse-on-contact safety feature
- Built-in battery backup for operation during power outages
- SBW version available for areas subject to strong winds
- Rated for UL325 Safety Standards — Class I, Class II, Class III, Class IV
- IP 67 projection class
- Hydraulic locks installed
- Standard steel in-ground housing
Specifications
- Model: S800H CBAC
- Actuator Input Voltage: 24V DC
- Controller Input Voltage: 110/115/120 AC (60 Hz, 1 Phase)
- Power: 60 W
- Current: 7 A
- Max Torque: 442 lbf ft (600 Nm)
- Max Angle Speed: 8.2 degrees/s
- Max Opening Angle: 113 degrees (S800H 100 Degree)
- Max Gate Width: 13 ft (4 m)
- Max Gate Weight: 1,760 lb (800 kg)
- Operating Ambient Temperature: -4°F to 131°F (-20°C to +55°C)
- Use Frequency: Continuous
- Oil Type: Regular Oil
- Housing: Standard Steel

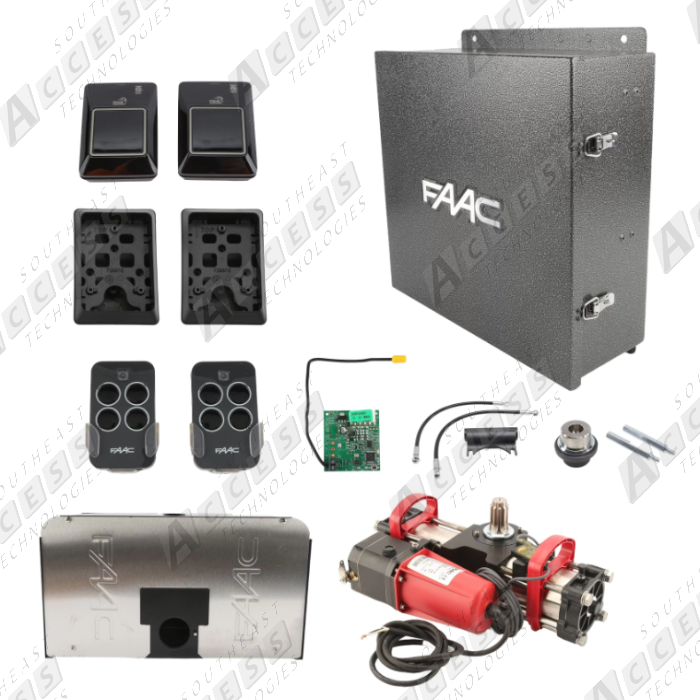

Kit Contents
- (1) S800H CBAC Gate Operator with Accessories
- (1) Hydraulic Manual Release
- (1) Splined Shaft Collar with Mounting Bolts
- (1) Support Box
- (1) E024U Control Board
- (1) Enclosure
- (2) Batteries 12V 8 Ah
- (1) Power Supply
- (1) Receiver 433 RC Plug-In
- (2) 4-Channel Transmitters XT4 433 RC
Compatibility & Expansion
This single kit can be expanded into a Primary/Secondary (bi-parting) dual gate system by adding the following components:
- S800H CBAC 100 Degree gate operator for dual kit — part number 10871015.5
- Support box — part number 490112
- AWG 12 2-conductor cable for operator — part number 2197
- AWG 22 2-conductor cable for encoder — part number 2193
The FAAC 108710_5 delivers reliable, heavy-duty in-ground swing gate operation while keeping your installation completely concealed for a clean, unobstructed appearance.
