FAAC 108710151_5 S800H CBAC Secondary Kit 100° In-Ground

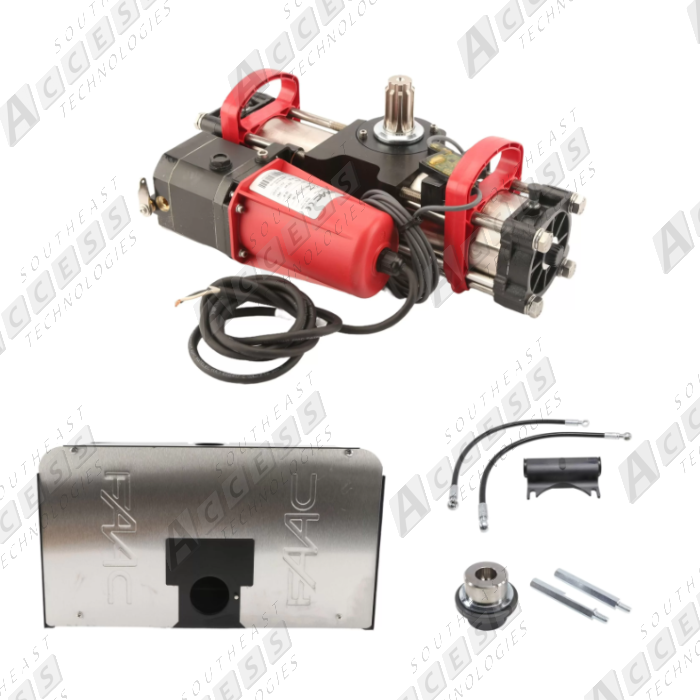

FAAC S800H CBAC Secondary Kit 100° – In-Ground Hydraulic Swing Gate Opener Secondary Kit

The FAAC S800H CBAC Secondary Kit (108710151_5) is a professional-grade, in-ground hydraulic swing gate opener secondary kit engineered for dual-gate installations. Designed to pair with a primary S800H operator, this secondary kit provides reliable, powerful operation for larger swing gates while maintaining a clean, underground aesthetic free of visible hardware.

Built around FAAC's proven S800H hydraulic platform and housed in a single support box with CBAC configuration, this kit is ideal for residential and commercial properties where both performance and curb appeal matter. The in-ground installation keeps the operator concealed beneath the surface, delivering a seamless look at the gate entrance.

Key Features

• In-Ground Hydraulic Operation: The S800H hydraulic mechanism is installed below ground level for a discreet, aesthetically pleasing setup with no visible above-ground components.
• 100° Opening Range: Provides a generous 100-degree swing arc, offering excellent clearance for vehicle and pedestrian access.
• Heavy-Duty Gate Capacity: Supports swing gates up to 13 feet in length and weighing up to 1,760 lbs., making it suitable for large residential and commercial gate panels.
• Secondary Kit Configuration: Specifically designed as a secondary unit to complement an existing S800H primary operator for dual-swing gate applications.
• CBAC Support Box: Includes the single CBAC in-ground support box for a streamlined and secure installation foundation.
• FAAC Quality Engineering: Manufactured by FAAC, a globally recognized leader in gate automation with decades of proven reliability in hydraulic operator technology.

Specifications

• Manufacturer: FAAC
• Model: S800H CBAC Secondary Kit 100°
• SKU: 108710151_5 (Previously: 108710151.5)
• Type: In-Ground Hydraulic Swing Gate Opener – Secondary Kit
• Opening Angle: 100°
• Maximum Gate Length: 13 ft
• Maximum Gate Weight: 1,760 lbs.
• Support Box: Single CBAC In-Ground Support Box

Application & Compatibility

This secondary kit is intended for use as the secondary operator in a dual-swing (bi-parting) gate system powered by FAAC S800H hydraulic operators. It is paired with a separate S800H primary kit to achieve synchronized dual-gate operation. The CBAC support box is designed for in-ground installation beneath the gate leaf, and professional installation is recommended to ensure proper drainage, alignment, and electrical connections.

Ideal applications include large residential driveways, estate entrances, commercial properties, and gated communities where heavy swing gates require powerful, concealed automation.

Trusted FAAC Reliability

FAAC has been an industry leader in gate automation for over 50 years, and the S800H series exemplifies their commitment to durability, performance, and innovation. By choosing the FAAC S800H CBAC Secondary Kit, you are investing in a proven hydraulic platform backed by professional-grade engineering and long-term dependability for your swing gate system.
