Magnetic AutoControl Professional Tech Service Module - SM01

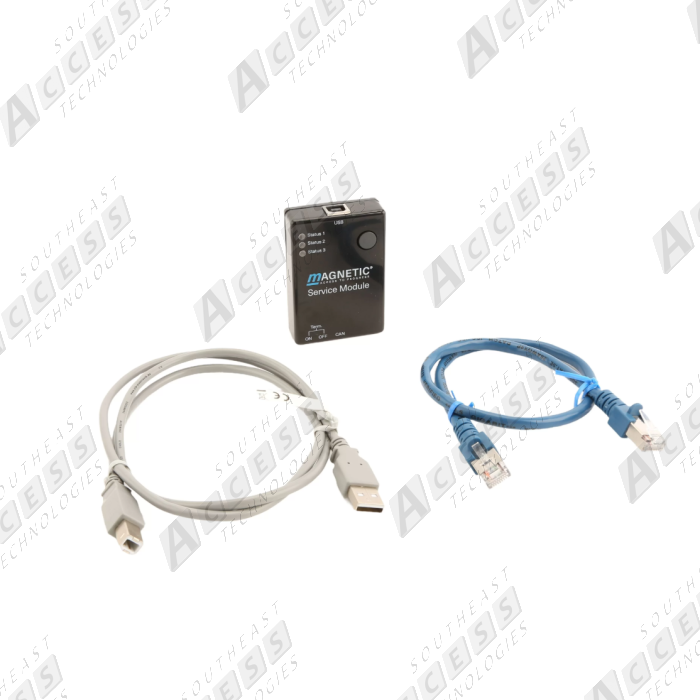

The Magnetic AutoControl Professional Tech Service Module (SM01) is a universal diagnostic and programming tool designed for use with all MHTM MicroDrive barriers. This essential service module enables technicians and installers to efficiently manage barrier control unit software, streamlining maintenance and configuration tasks in the field or at the shop.

With the SM01, users can download software updates to barrier controllers, read out and save existing parameters, and conveniently transfer saved parameters to other controllers. This makes it an invaluable tool for fleet management of multiple barrier installations, ensuring consistent configuration across sites and simplifying the process of replacing or upgrading control units.

Key Features

• Universal Compatibility: Works with all MHTM MicroDrive barrier systems from Magnetic AutoControl.
• Software Updates: Easily download and install the latest control unit software updates to keep barriers running with the most current firmware.
• Parameter Management: Read out, save, and transfer controller parameters — ideal for cloning configurations across multiple units or backing up settings before service.
• Simple Connectivity: Connects directly to the service port (MGC) of the barrier controller for fast, reliable communication.
• Dual Interface Ports: Equipped with both USB and CAN (service interface port MGC) connections for versatile integration with PCs and controllers.
• Galvanic Isolation: The CAN interface features galvanic isolation for enhanced electrical safety and protection of connected equipment.
• Intuitive Controls: Includes 1 push-button and 3 status LEDs for straightforward operation and at-a-glance status indication.
• CAN Termination Switch: Built-in sliding switch for CAN bus termination, allowing proper network configuration.
• Flexible Power Supply: Powered via USB or CAN — no separate power adapter required.

Specifications

• Part Number: SM01
• Manufacturer: Magnetic AutoControl
• Product Type: Service Module
• Power Supply: Via USB or CAN
• Interface Ports: USB, CAN (service interface port MGC)
• Electrical Separation: CAN interface, galvanically isolated
• Operating Controls: 1 push-button, 3 status LEDs
• CAN Termination: Sliding switch

Compatibility & Application

The SM01 Service Module is designed as a universal tool for all MHTM MicroDrive barriers manufactured by Magnetic AutoControl. It connects to the standard service port found on MicroDrive barrier controllers, making it compatible across the full range of MicroDrive product lines. This module is intended for use by professional technicians and authorized service personnel who manage, install, or maintain Magnetic AutoControl barrier gate systems.

Whether you are performing routine software updates, commissioning new barrier installations, or troubleshooting existing systems, the SM01 provides reliable and efficient access to controller parameters and firmware. Backed by Magnetic AutoControl's reputation for engineering excellence in barrier gate technology, this service module is built to deliver dependable, long-term performance as an essential part of your professional service toolkit.
