EMX Industries 2700-1 Ultrasonic Vehicle Detector

Overview

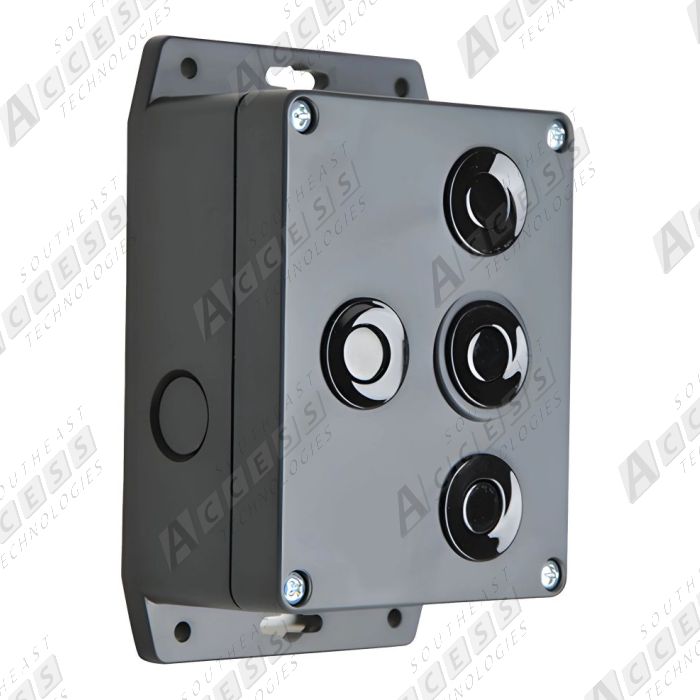

The EMX Industries 2700-1 (USVD-4X) ultrasonic vehicle detector uses Triangular Planar Array (TPA) technology to detect vehicle presence without the need for a loop in pavement. Simply mount the unit on a post or order box and aim it at the location where a vehicle would pass — no set-up or adjustments required. The detection head consists of 4 ultrasonic transducers that connect to an internal microprocessor-based control board, scanning the expected vehicle location and activating its output upon detection.

Key Features

• Triangular Planar Array (TPA) technology — loop-less vehicle detection
• Operating range: 1 ft. – 5 ft.
• Response time: 2.0 seconds
• 2 SPDT (Form C) relay outputs — relay contact rating 1A @ 24VDC
• Auxiliary relay with configurable pulse on ENTRY, EXIT, or BOTH
• Output delay options: 1, 2, and 4 seconds (via dip switches)
• Sensitivity adjustment via brass knob on blue potentiometer — 25 full turns of range; factory set to maximum
• ABS NEMA 4X housing
• CE compliant
• Power indicator: Green LED (no vehicle); Flashing Green LED on each input when object in range; continuous LED on detect
• Connection via 10-position terminal block

Specifications

• Sensing Elements: 4 ultrasonic in TPA configuration
• Operating Range: 1 ft. – 5 ft.
• Response Time: 2.0 seconds
• Supply Voltage: 12…24 VDC/VAC
• Operating Current: 60mA
• Operating Temperature: -40°C…+85°C (-40°F…+182°F)
• Dimensions: 5.7" (145mm) x 3.6" (90mm) x 2.3" (57mm)
• Weight: 0.6 lbs. (275g)
• Housing: ABS NEMA 4X
• Relay Output Configuration: 2 SPDT (Form C)
• Relay Contact Rating: 1A @ 24VDC
• Connection: 10-position terminal block

Compatibility

• Compatible with the Chime 100: connect the two PWR inputs on the 2700-1 to VOUT+ and VOUT- on the Chime 100; connect 1NO and 1COM or 2NO and 2COM to Input 1 and Input 2 on the Chime 100.

The EMX Industries 2700-1 delivers reliable, loop-free vehicle detection for a wide range of drive-thru operations.
