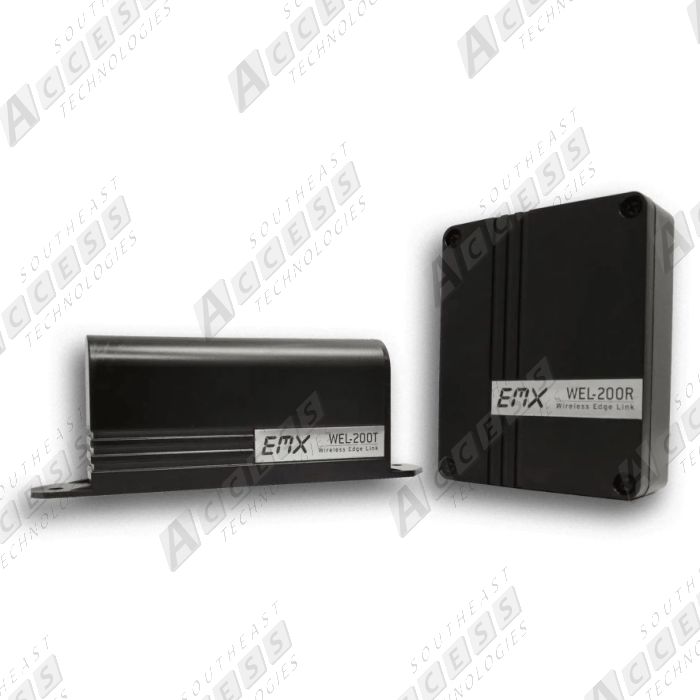

EMX Industries 4012-2 Wireless Edge Link Kit
The EMX Industries 4012-2 Wireless Edge Link Kit (WEL-200K) delivers a complete wireless safety edge interface solution with an operating range of up to 200 ft. at 915 MHz, UL325-2018 compliant, and Made in USA.
Overview
The EMX Industries 4012-2 Wireless Edge Link Kit (WEL-200K) provides a complete wireless solution for interfacing sensing edges with gate and door operators. By eliminating the wiring between the safety edge and the operator control box, the system ensures compliance with UL325-2018 monitoring standards. The receiver supports up to four safety edge transmitters and provides separate relay and pulse outputs for open and close edge functionality.
Key Features
- Operating range up to 200 ft. (61 m) line of sight
- Operating frequency: 915 MHz
- NEMA 4X enclosures
- Connect up to 4 safety edge transmitters
- Compatible with NC, 10K, and pulse monitored outputs
- Transmitter compatible with 8.2K and 10K monitored safety edges
- Receiver OPEN and CLOSE relay outputs: Form C contacts (NO, COM, NC)
- OPEN and CLOSE pulsed outputs: open collector transistor output (opto-isolated)
- Resistive termination: 10K ohm across NO contact (jumper selectable)
- Power protection: Thermal fuse, MOV (receiver); Thermal fuse (transmitter)
- Response time: 100 ms
- Transmitter operates 2 years on two AA lithium batteries at 25°C
- UL325-2018 compliant
- Made in USA
- 2-Year Limited Manufacturer Warranty
Specifications
- Operating Range: Up to 200 ft. / 61 m (line of sight)
- Operating Frequency: 915 MHz
- Response Time: 100 ms
- Operating Temperature: -40°C — 60°C (-40°F — 140°F)
- Receiver Dimensions (L x W x H): 140 mm (5.5") x 34 mm (1.3") x 90 mm (3.5")
- Transmitter Dimensions (L x W x H): 180 mm (7.0") x 32 mm (1.3") x 67 mm (2.6")
- Receiver Weight: 200 g (7 oz.)
- Transmitter Weight: 170 g (6 oz.)
- Receiver Power Supply: 12–24 VAC/VDC
- Receiver Current Draw: 50 mA
- Transmitter Power Supply: 3–3.6 VDC (2x AA batteries — ANSI 15-LF, IEC-FR14505 (FR6))
- Battery Life: 2 years at 25°C
- Receiver Connections: 12 terminals (18–26 AWG)
- Transmitter Connections: 2 terminals (18–26 AWG)
- Environmental Rating: NEMA 4X
- Receiver Indicators: Red power LED / Green channel LED
- Transmitter Indicators: Green transmit/status LED
- Former Part Number: WEL-200K
Compatibility
- Compatible with NC, 10K, and pulse monitored outputs
- Transmitter compatible with 8.2K and 10K monitored safety edges
- Supports up to 4 safety edge transmitters per receiver
The EMX Industries 4012-2 is a reliable, USA-made wireless safety edge solution engineered for UL325-2018 compliance and long-term field performance.
